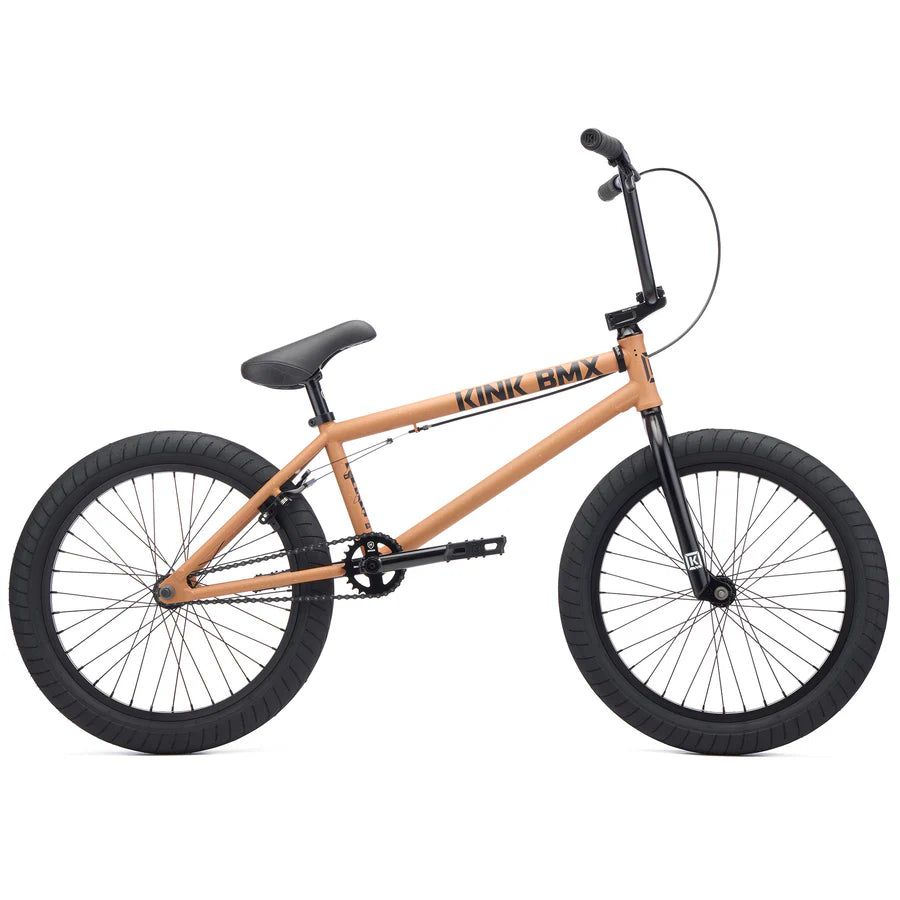

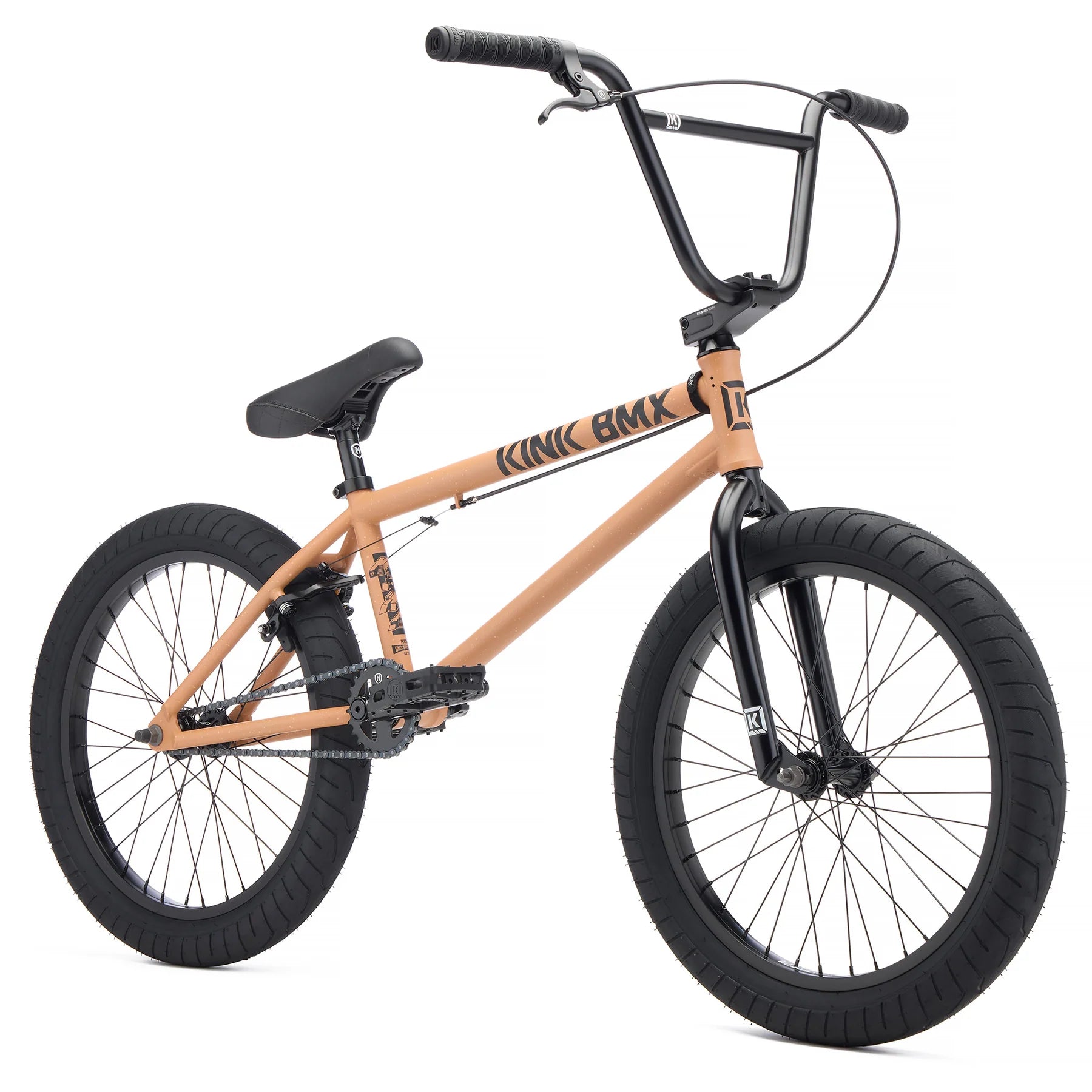

The all-new Kink Setup is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer more adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding.
Color: Oxide Orange
Specifications
Frame: 4130 Chromoly Front Triangle
Fork: Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs
Handlebars: Kink T900 100% 4130 Chromoly; 9" rise
Grips: Kink Ace Flangeless
Stem: Kink Bold HRD 50mm
Headset: Mission Sealed Integrated (41.8 x 45)
Brake Lever: Mission Token
Brake Cable: Mission L3 Linear
Brakes: Mission Cease V2
Cranks: Kink Ridge 3pc Tubular Chromoly 170mm - 8 Spline
Bottom Bracket: Sealed Mid 19mm
Pedals: Kink Hemlock
Chain: Mission 410
Sprocket: Mission Breach 25T
Front Hub: Mission Covert, Unsealed, 3/8" Axle
Rear Hub: Mission Engage, Sealed Cassette, 14mm
Driver: 9 Tooth
Rims: Mission X7
Seat: Kink Plymouth Stealth
Seat Post: Mission Stealth
Seat Clamp: Mission Slim Clamp
Tires: Kink Sever 2.4"
Geometry
Toptube: 20.5"
Seat Tube: 71°
Headtube: 75°
Chainstay: 13.25"
Standover: 9"
BB Height: 11.6"
Fork Offset: 30mm
We only ship bikes to the contiguous 48 states and DC. We do not ship bikes to AK, HI, PR or APO and FPO addresses.
All new bikes come partially assembled and final assembly should be made by a professional bike mechanic. Any warranty claims should be made directly with the manufacturer. Bicycle is not warranted against mis-assembly, abuse, neglect, and stupidity.
*Manufacturer's posted specifications are subject to change without notice.
