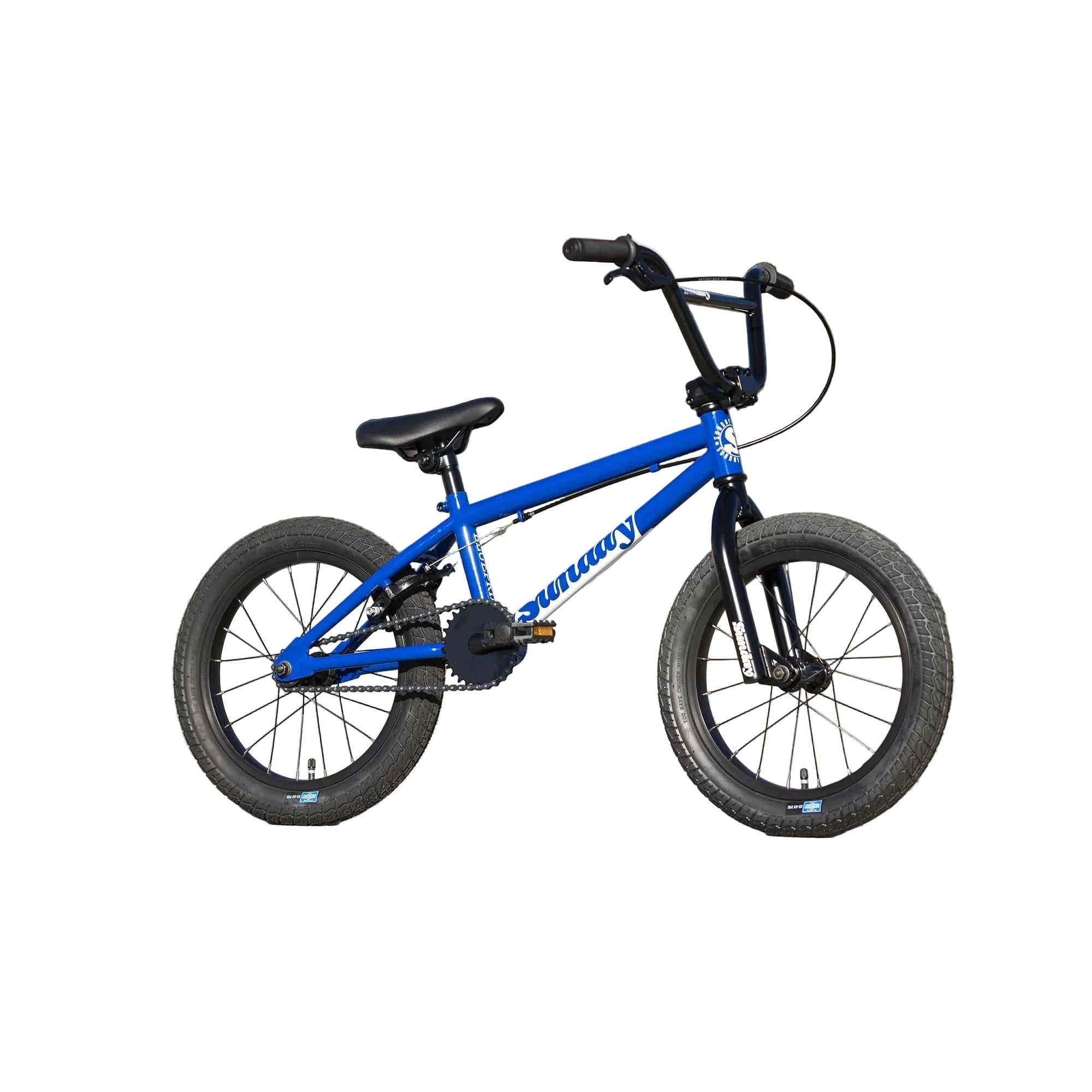

The Blueprint is ready to help kids of all ages learn to ride. Sunday's entry-level 16” bikes are fun and easy to use so kids can keep learning and keep riding. Simplicity and reliability are the goals with the Blueprint, and details like an adjustable seat and an adjustable reach brake lever mean that you can get the bike set up perfectly for riders of all sizes.
Color: Gloss Sunday Blue
SPECIFICATIONS

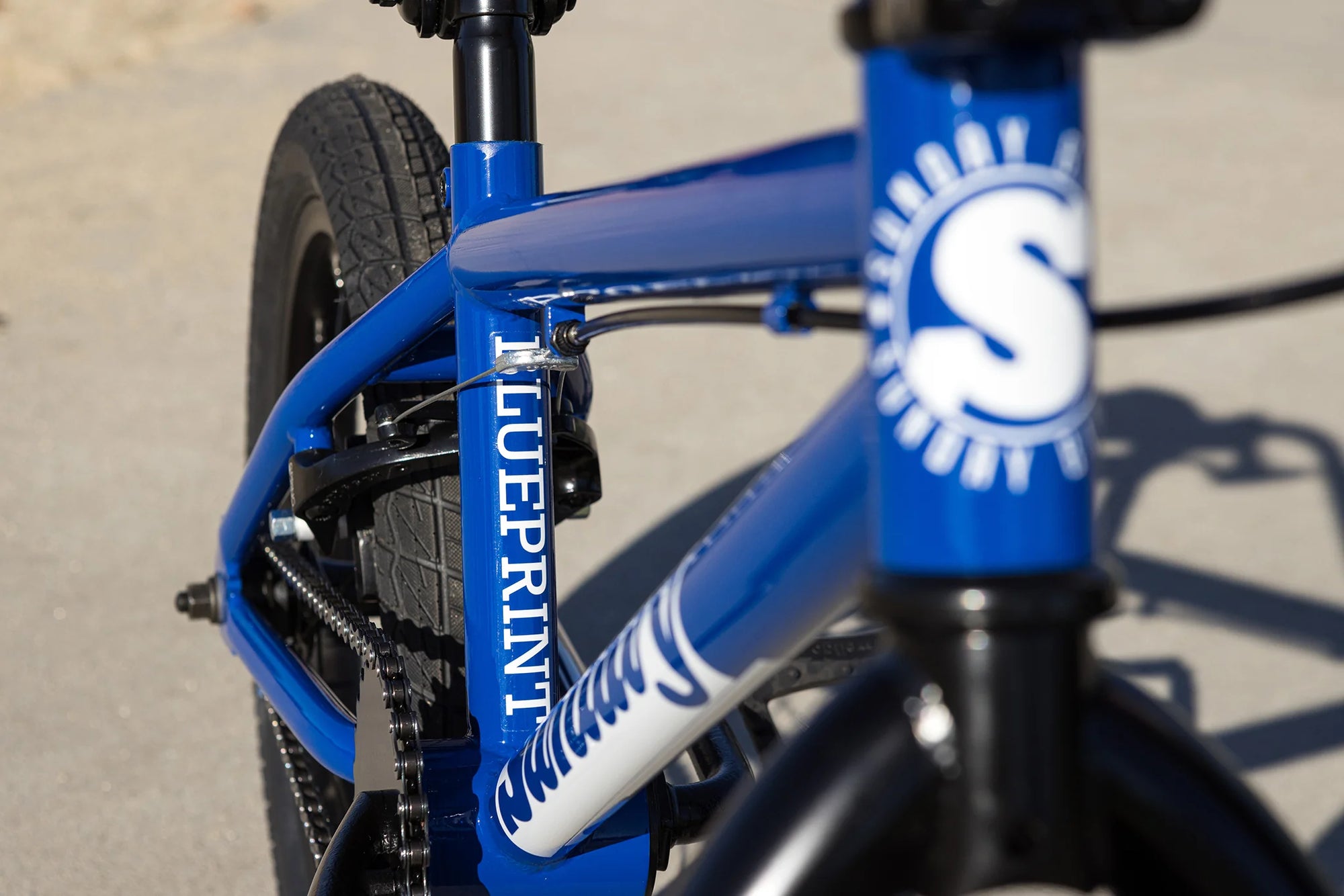

Frame: Sunday Blueprint, 15.5" top tube
Fork: Sunday Blueprint, 16" fork w/ 2-piece steerer tube

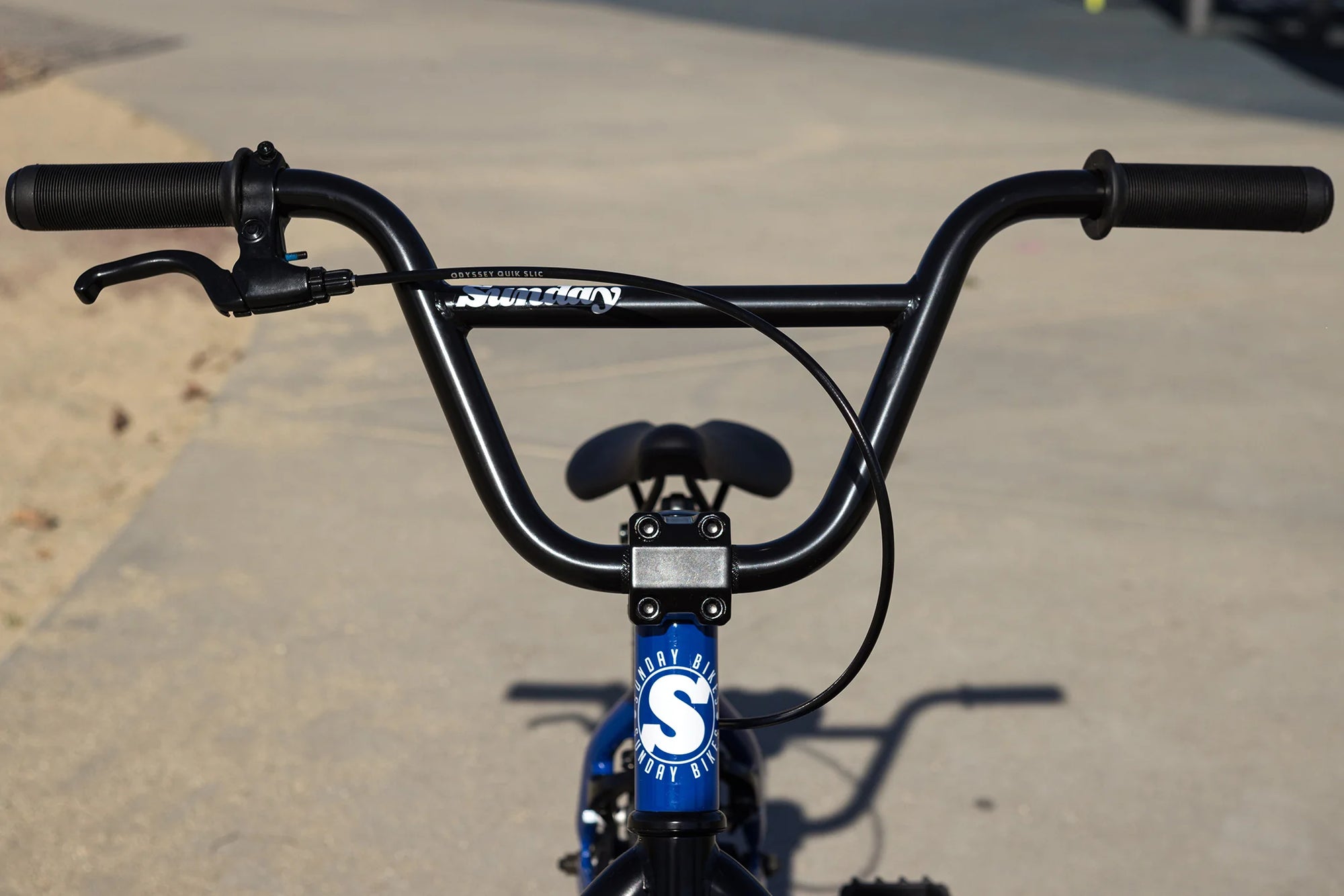

Handlebar: Sunday, 2-piece

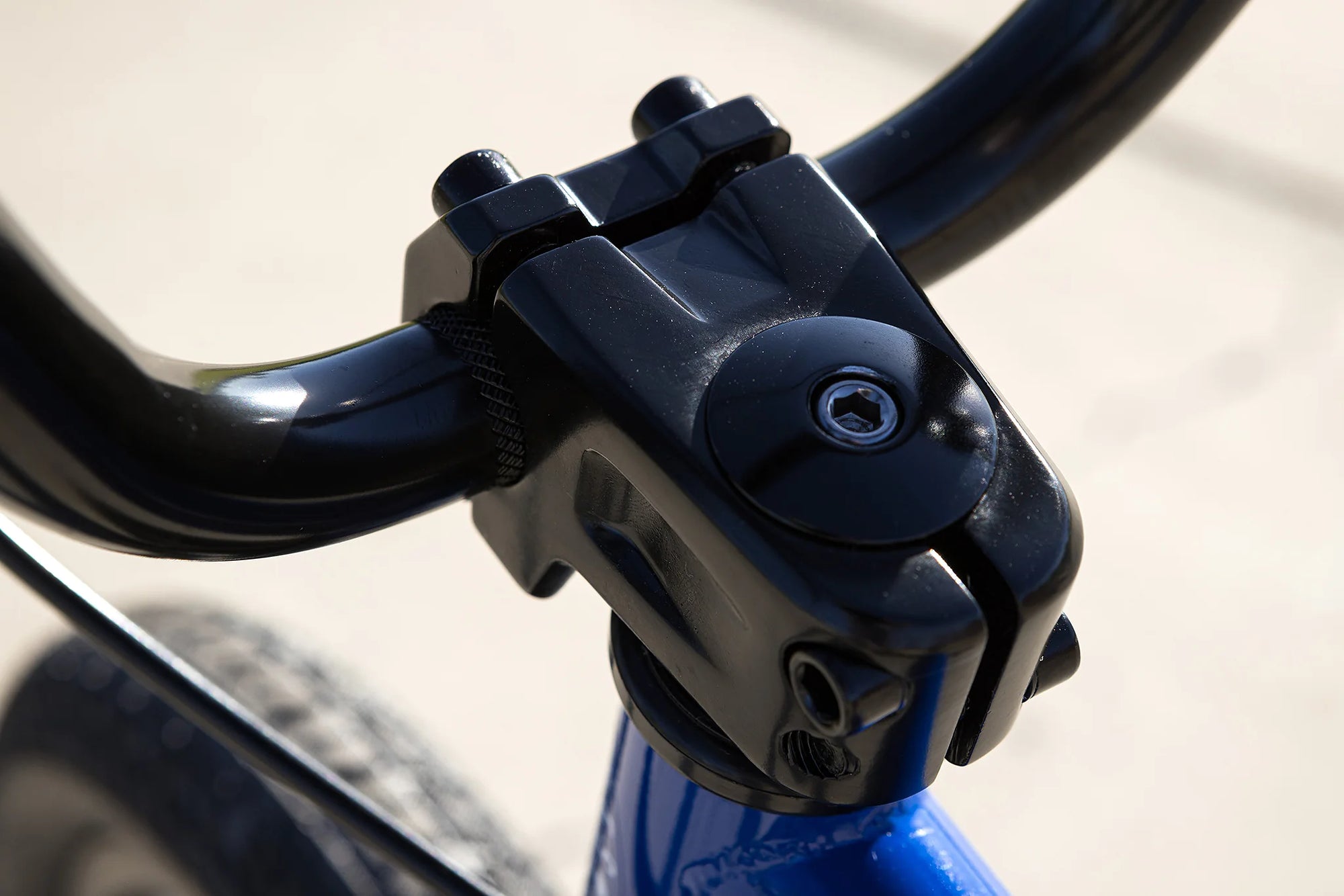

Stem: Front load, aluminum, 40mm
Headset: Traditional 1-1/8"
Alloy Cap: Aluminum cap w/ star nut
Brake Lever: Junior Aluminum, Short Reach, U-brake compatible

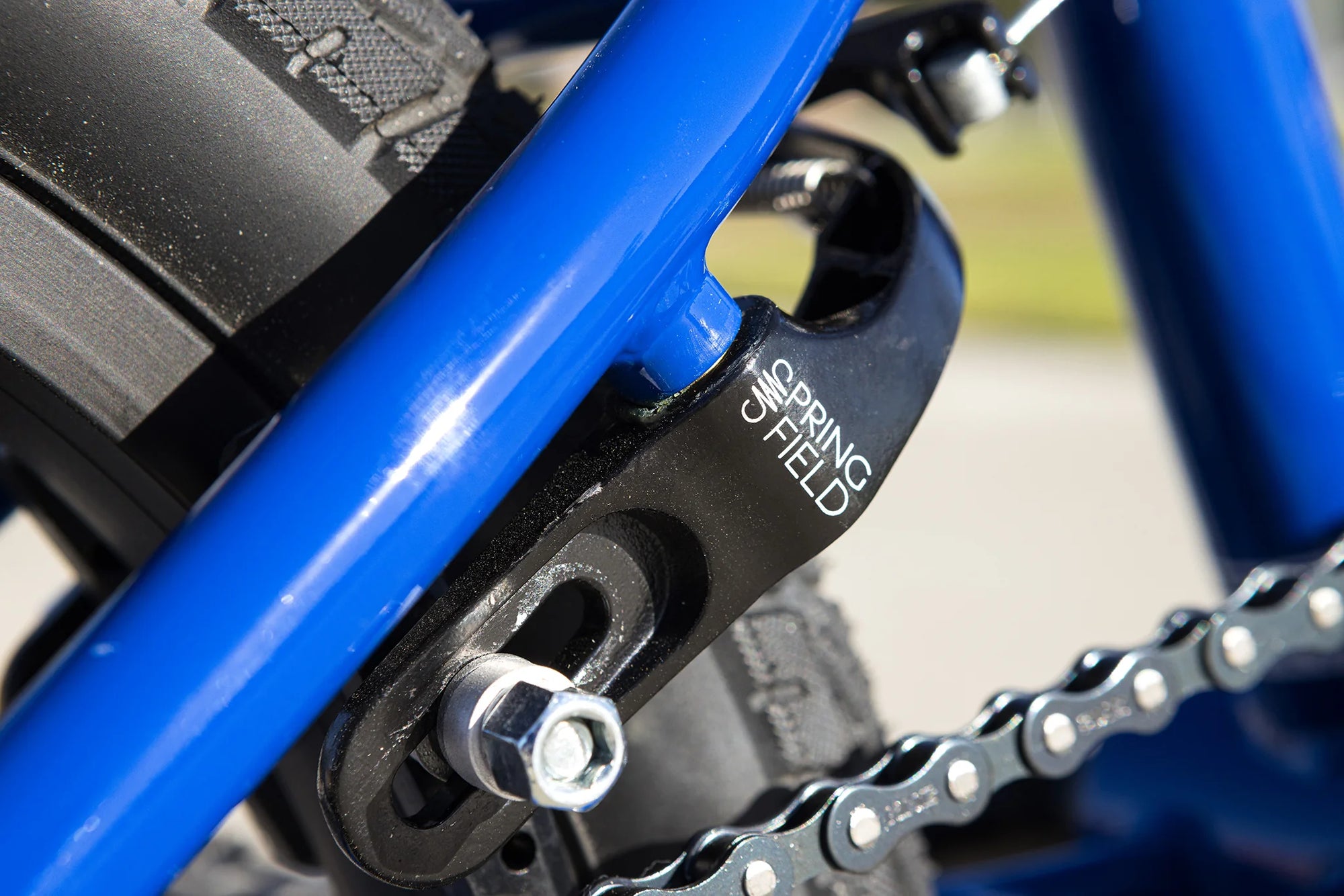

Brakes: Odyssey Springfield U-brake

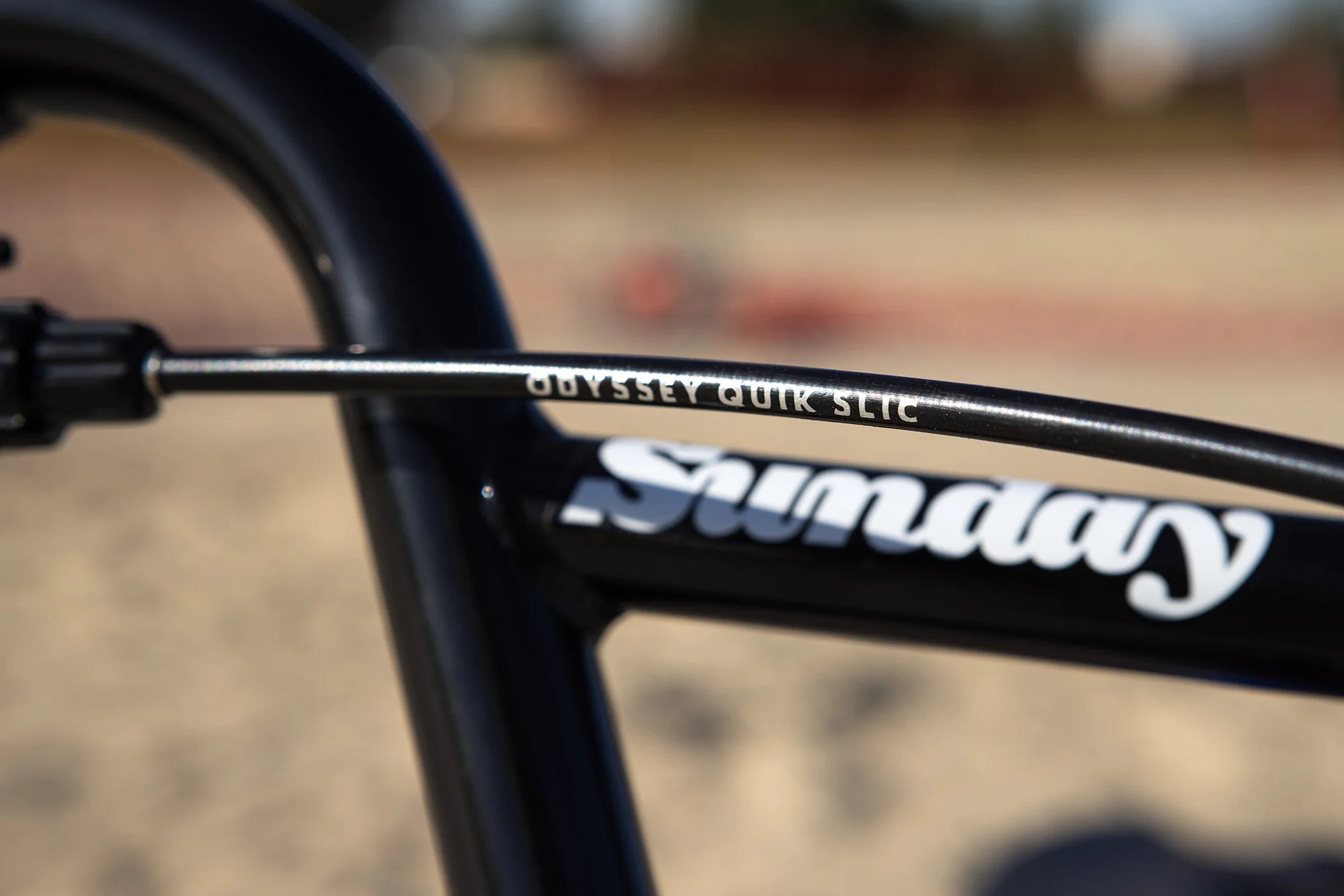

Brake Cable: Odyssey Quik Slic

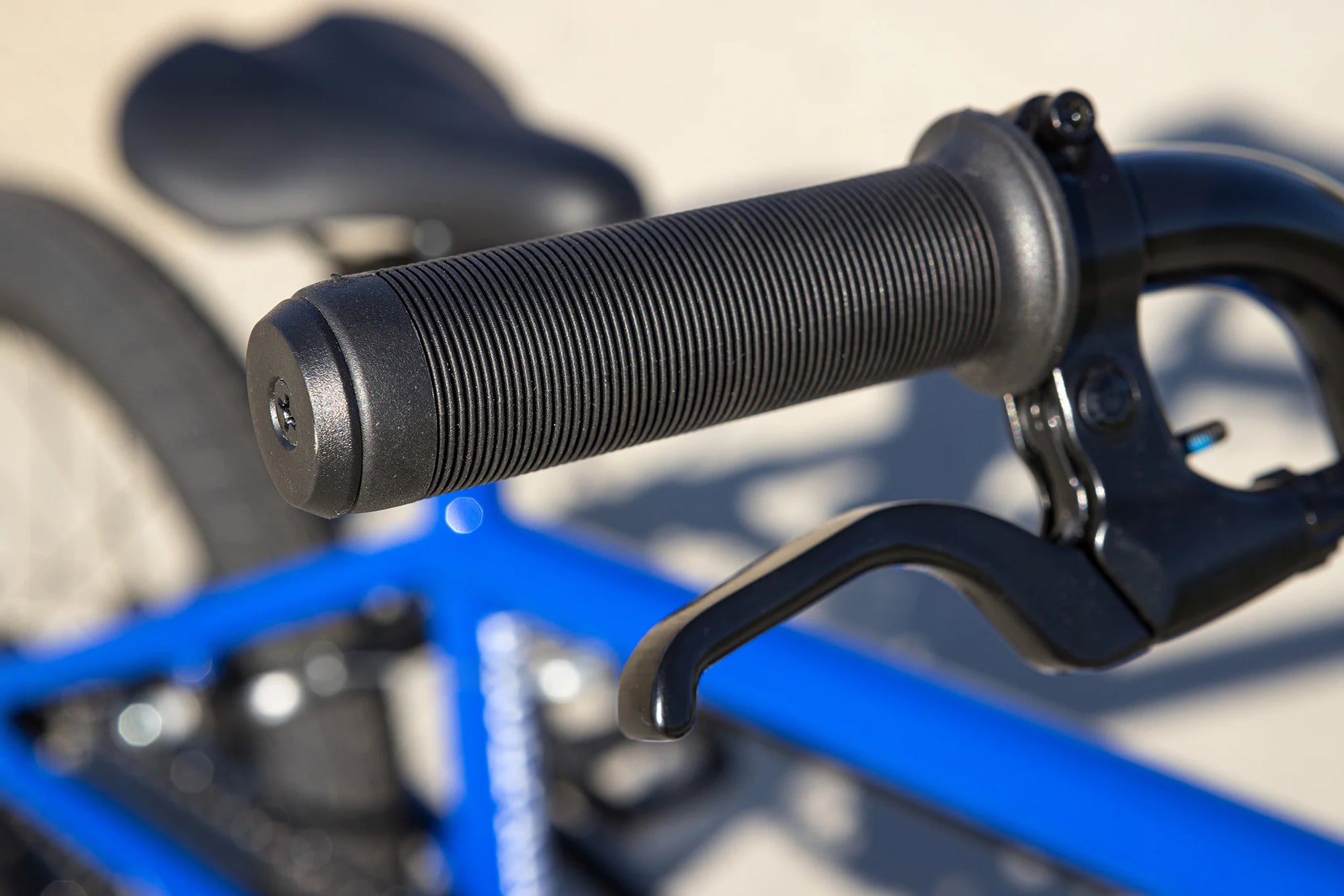

Grips: Velo Junior
Seat: Velo Junior, adjustable
Seat Post: 1" steel
Seat Clamp: Integrated

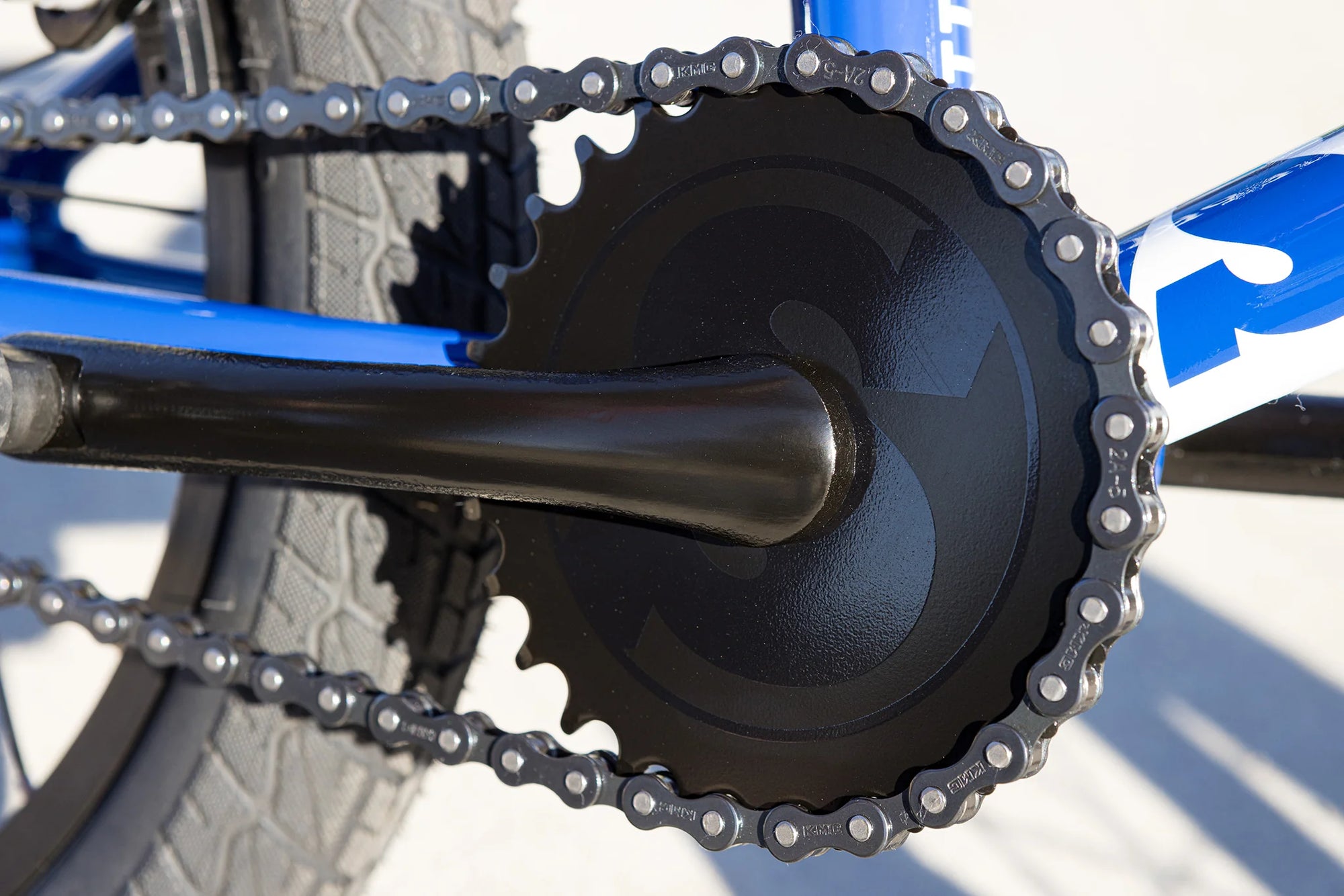

Sprocket: Sunday S-Logo, 28T, steel
Cranks: 115mm, 1-piece
BB Parts: Loose-ball, American, 19mm

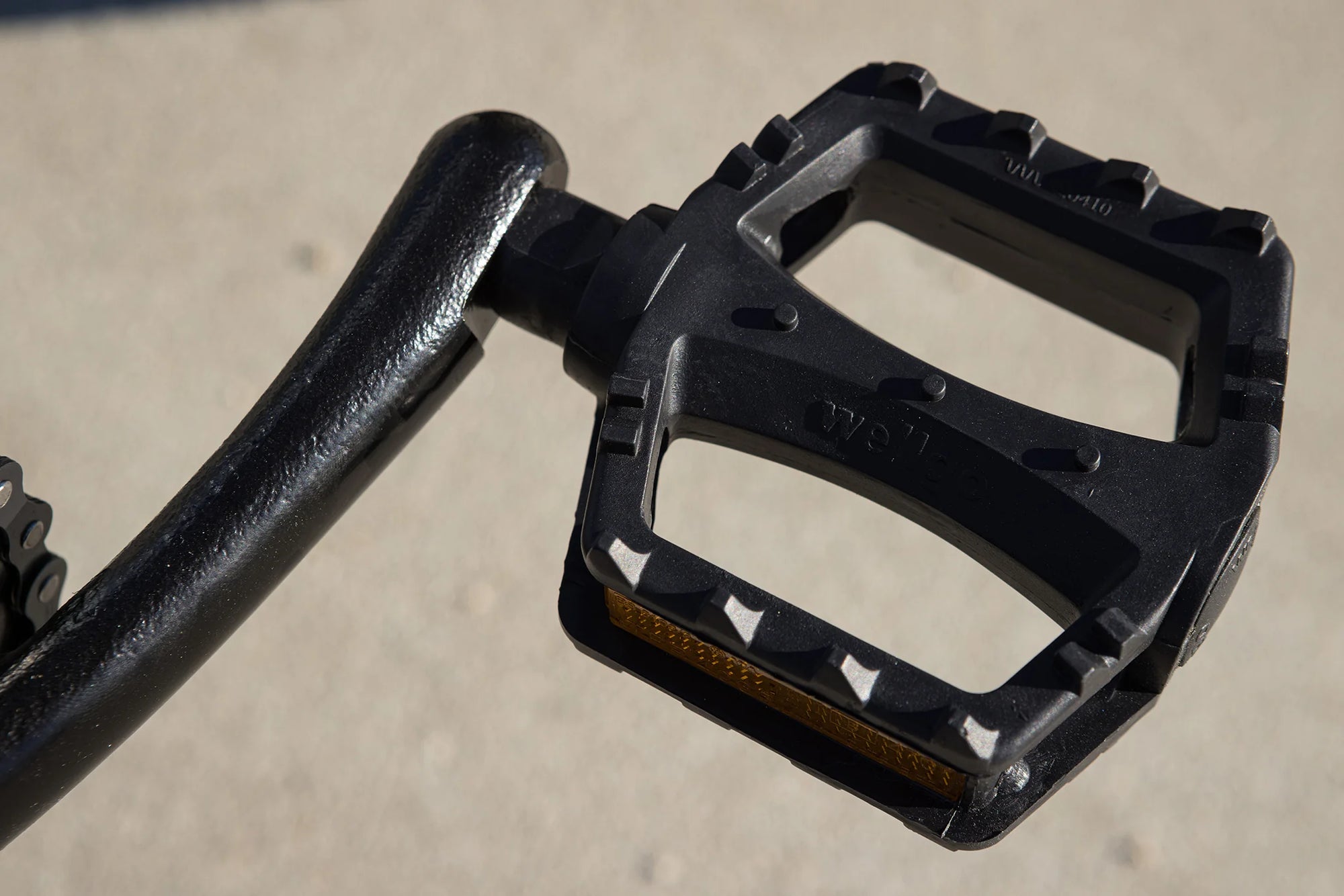

Pedals: Wellgo Junior platform, plastic
Rims: P-7X aluminum, 16", 20H

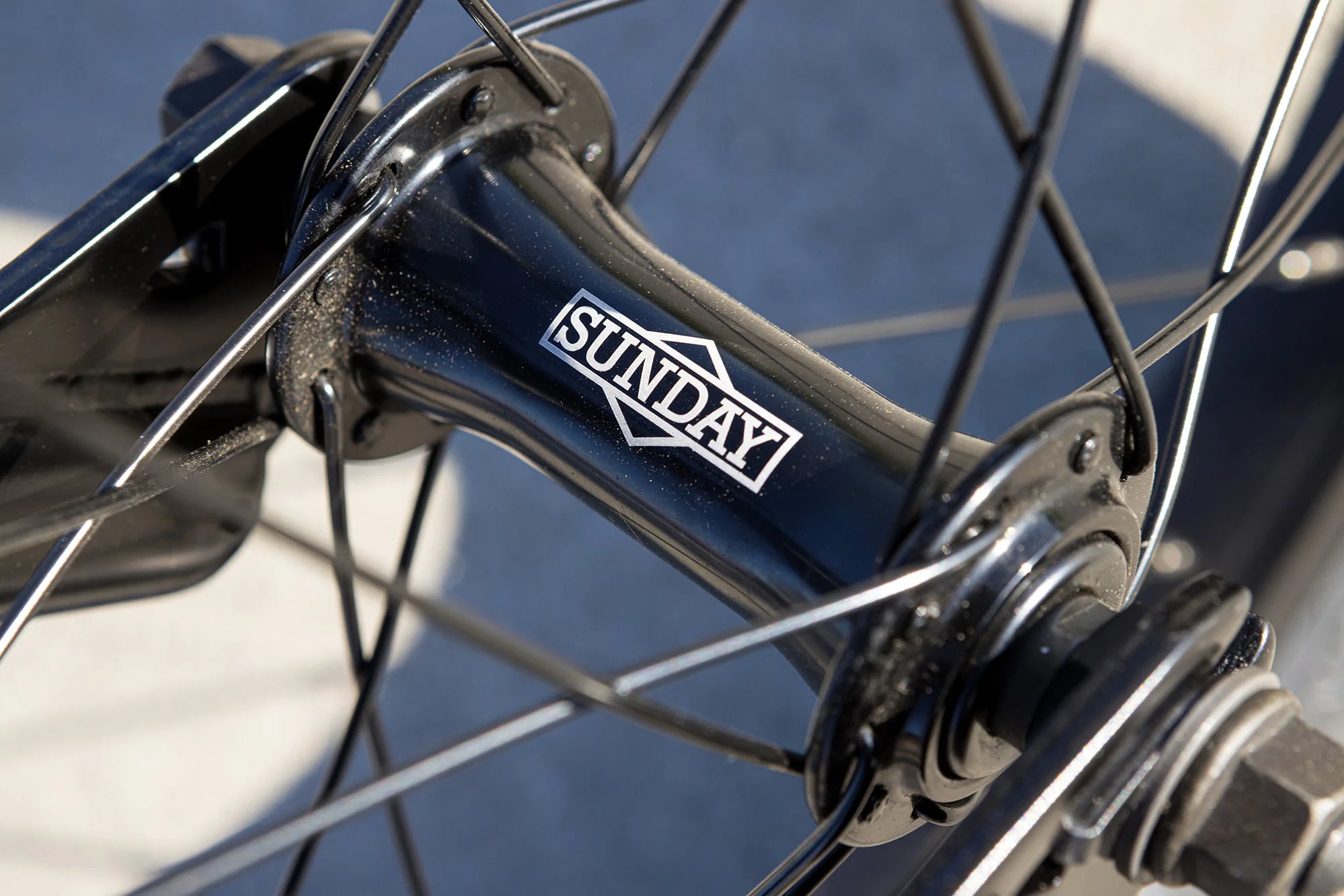

Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle
Rear Hub: 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
Spokes: 14g steel, black

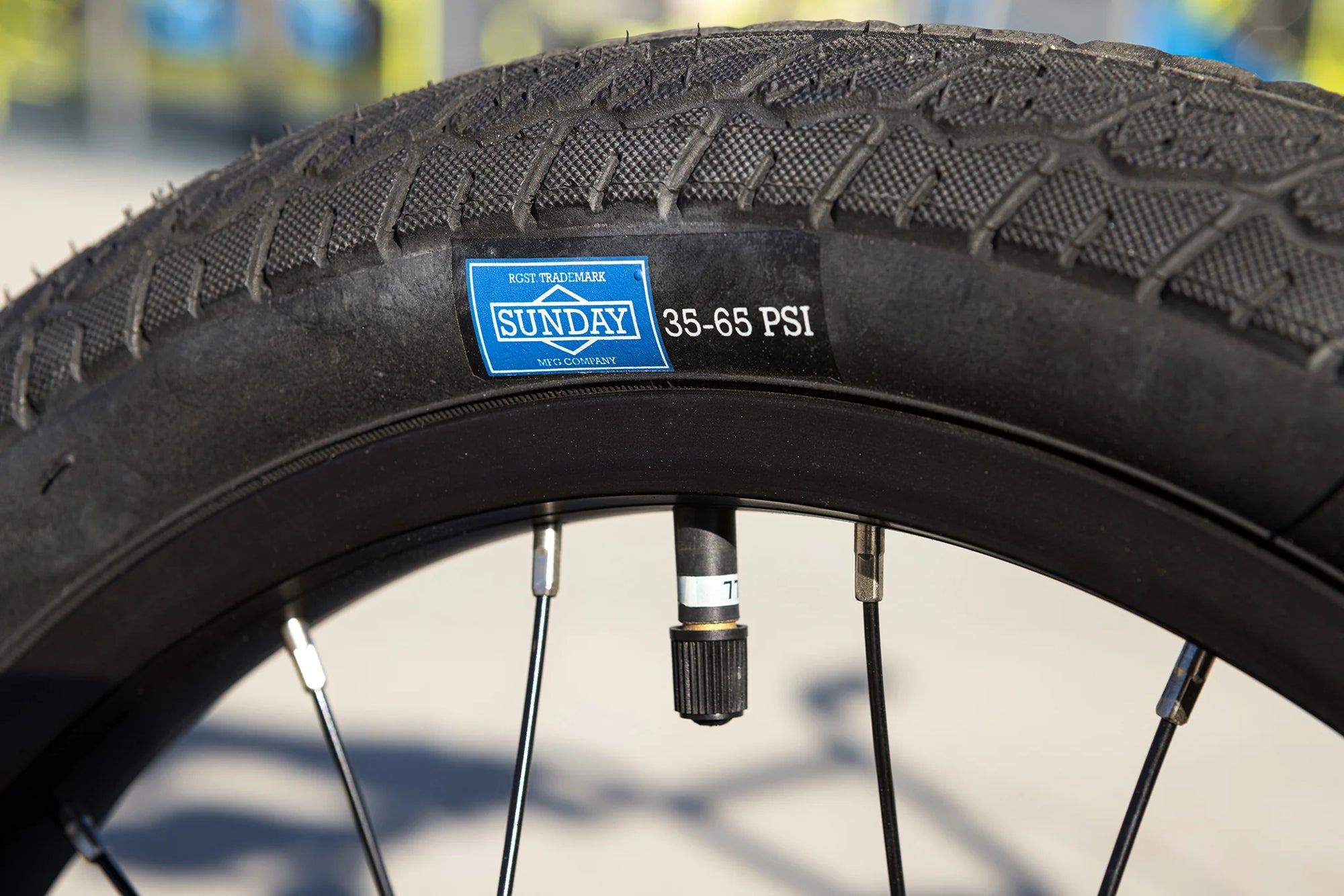

Tires: Sunday Current, 16x2.1" (F & R)
Chain: KMC S1
Approx. Weight: 21.73lbs (with brakes)
*Spec as shown/listed above is subject to change based on component availability.
FRAME GEOMETRY
Top Tube Length: 15.5"
Head Tube Angle: 73.5°
Seat Tube Angle: 71°
Chainstay Length: 11.25”
Bottom Bracket Height: 9.25"
Standover: 6.9"
HANDLEBAR GEOMETRY
Rise: 6.75"
Width: 23"
Backsweep: 12°
Upsweep: 1°
We only ship bikes to the contiguous 48 states and DC. We do not ship bikes to AK, HI, PR or APO and FPO addresses.
All new bikes come partially assembled and final assembly should be made by a professional bike mechanic. Any warranty claims should be made directly with the manufacturer. Bicycle is not warranted against mis-assembly, abuse, neglect, and stupidity.
*Manufacturer's posted specifications are subject to change without notice.
