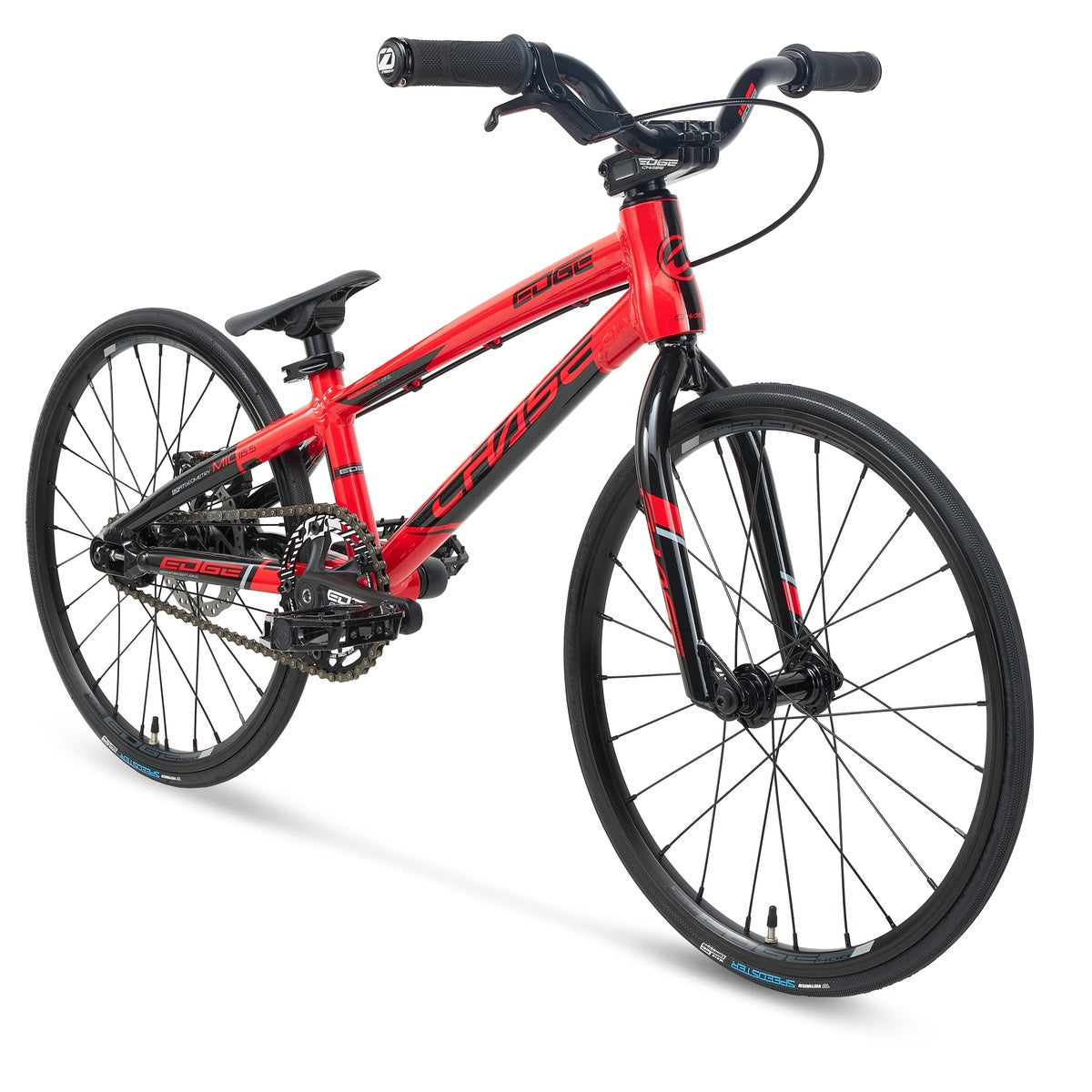

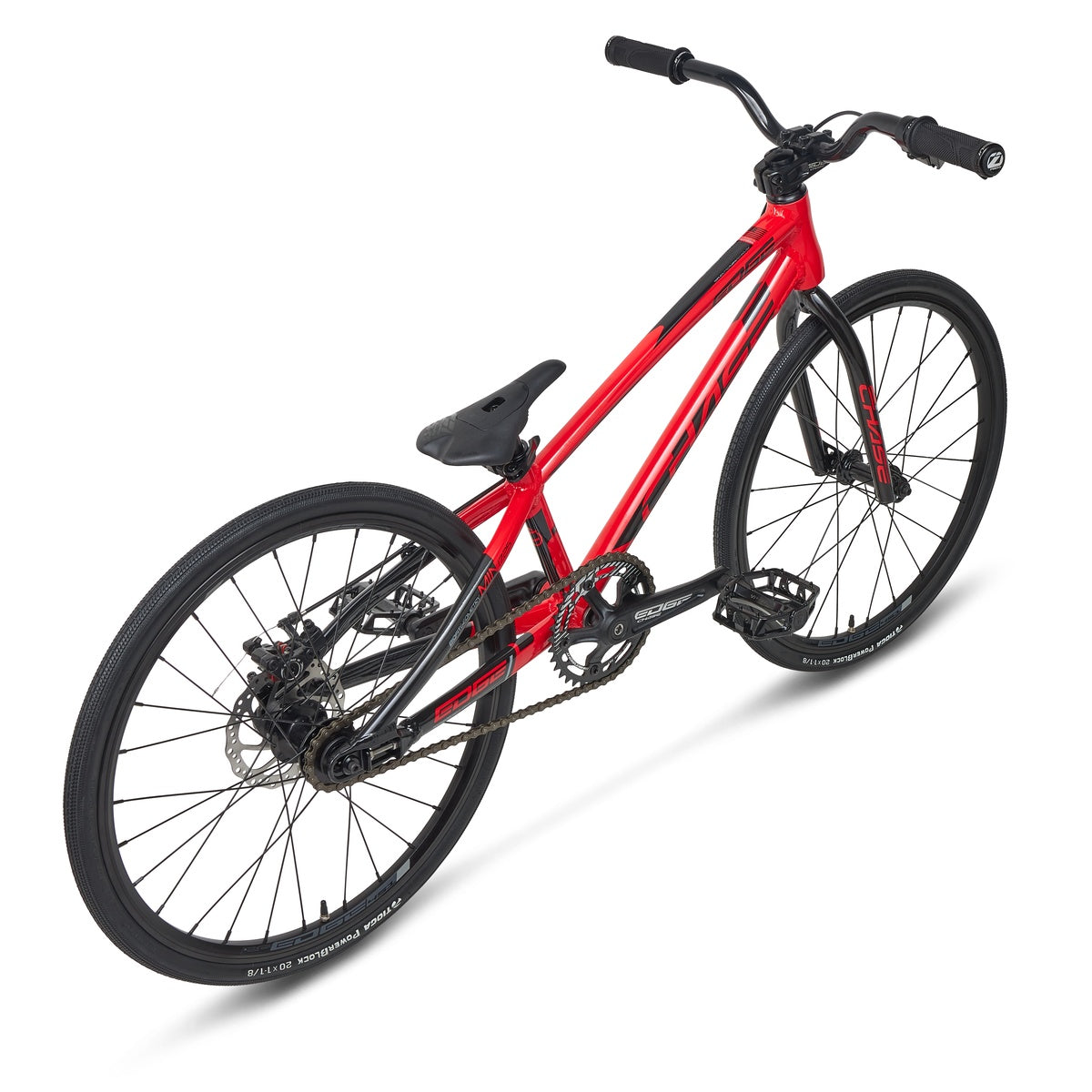

Chase Edge Micro 18" Complete BMX Race Bike - 16.25"TT - Red/Black

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level. The Edge frame features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

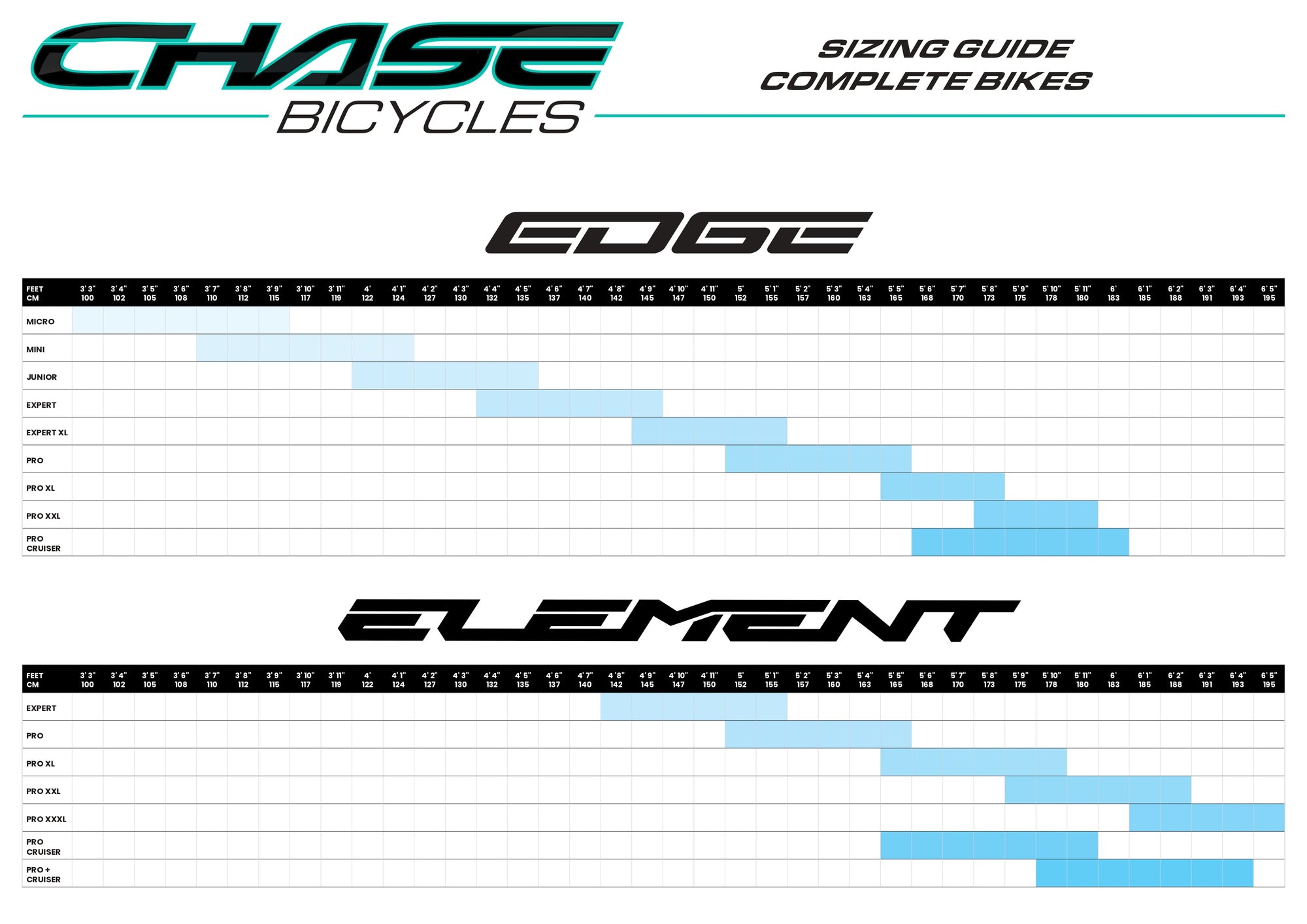

This bike is sized for a rider approximately 3'3" - 3'9" tall.

Color: Red & Black

Specifications

Frame: 6061 aluminum with 3D dropouts and internal cable routingCHASE Edge Micro 16.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain Tensioner System
Fork: CHASE Edge Micro Full Cr-mo, 1″ Steer Tube With Tapered Blades
Handlebars: Chase Edge Cr-Mo 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep
Stem: CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
Headset: Integrated IS 42/42 Reductor 1″, Sealed Bearing
Brakes: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
Cranks: CHASE Edge Alloy, 130mm
BB: Euro Square Taper Sealed Bearing, 113mm
Sprocket: INSIGHT 35T 5 Bolts BCD 110mm
Rims: CHASE Edge 100 Double Wall 18″x1″, 24H Front, 28H Rear
Hubs: CHASE Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
Tires: 18x1” Vee Speedster
Seat: INSIGHT Mini Pivotal
Seatpost: Pivotal 25.4x110mm Alloy
Seat Clamp: Chase Edge QR Alloy 28.6mm

Frame Geometry

Toptube: 16.25"
Seat Tube: 69°
Headtube: 71°
Chainstay: 10.85"

We only ship bikes to the contiguous 48 states and DC. We do not ship bikes to AK, HI, PR or APO and FPO addresses.

All new bikes come partially assembled and final assembly should be made by a professional bike mechanic. Any warranty claims should be made directly with the manufacturer. Bicycle is not warranted against mis-assembly, abuse, neglect, and stupidity.

*Manufacturer's posted specifications are subject to change without notice.
